Hot Exhaust Heating And Inner Thermal Oil Coils Heating Asphalt Heating Tank With High Density Rock Wool Insulation
Description
The YZSL series asphalt storage tank integrate the thermal oil boiler into the storage tank, it does not need the external thermal oil boiler and is suitable for users who do not have the thermal oil boiler on site.
The equipment uses diesel fuel as a fuel, burning in the combustion chamber, also equipped with two heating system such as multi row flue and thermal oil coils to heat asphalt together.

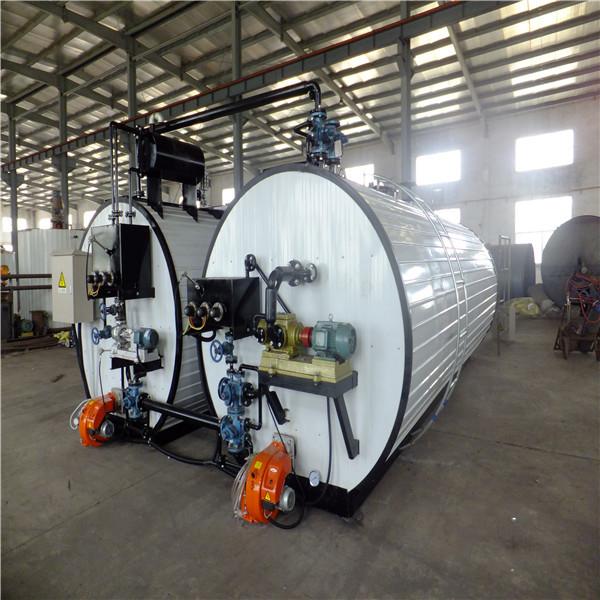

Cylinder shape asphalt heating tank main components
Mainly include tank body(including insulation layer), diesel burner, built-in combustion chamber (including thermal oil jacket layer), multirow flue and thermal oil coils, asphalt pump, thermal oil circulation pump, thermal oil expansion tank, asphalt temperature control system, thermal oil temperature control system, liquid level meter, pipeline and asphalt pump heat tracing system, asphalt entrance and exit, climbing ladder, switch box and discharge manger.
Working principle
The device has a built-in combustion chamber with a thermal oil jacket layer, and the multirow of flue and the thermal oil coil. The thermal oil is heated by the flame in the jacket layer, then the hot thermal oil is pumped and passed through the coil to heat the asphalt, meanwhile, the hot exhaust also heat the asphalt through the multirow flue, so the two methods including the high temperature flue and the hot thermal oil coil heat the asphalt at the same time.
Features
1. Suitable for rapid heating of matrix asphalt.
2. Self-heating integrated structure, easy to install, convenient to move and transfer, saves the transportation cost and occupied space of the external thermal oil boiler.
3. Equipped with Baltur diesel oil burner, features stable performance, low fault rate and less energy consumption. The start and stop of the burner is automatically controlled by both temperature of the asphalt and the thermal oil.
4. Built-in combustion chamber, the heat of the chamber is directly absorbed by the asphalt in the melting tank, which makes the heat transfer more directly, saving the heat lost by the split thermal oil boiler and the connecting pipe, so the heat loss is smaller.
5. The combustion chamber was wrapped by the overall thermal oil jacket. The contact with the asphalt is the thermal oil jacket layer instead of a flame combustion chamber, so the asphalt does not overheat and aging.
6. High temperature thermal oil can supply heat tracing of asphalt pump and asphalt pipeline.
| Item | Unit | Parameter | Remark |
| Heating way | | Double heating including burning flue and thermal oil coils | |
| Heating speed | degree per hour | 10-15 | air over 25 degree |
| Diesel consumption | kg/ asphalt per ton | 3-5 | continuous production |
| Bitumen highest temperature | degree | 180 | |
| Total capacity | m3 | 20 | |
| Outer size | m | diameter 2.25 × length 7.4 | total length |
| Support | unit | complete base | |
| Bitumen pump flow | m3 per hour | 16.8 | |
| Total power | kw | 8 | |
| Power supply | | 380v 50Hz stable AC power | |
| Thermal oil work temperature | degree | 200-250 | |
| Bitumen temperature control | | auto control | |
| Thermal oil temperature control | | auto control | |
| Environmental protection | | Complying with (better than) environmental protection requirements | |
Our advantages
Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, mainly including asphalt melting equipment for drum/box/bag packing, asphalt tank, asphalt emulsion equipment and asphalt sprayer, also we have the big advantages as below,
1. Independent design and professional manufacturer.
2. Production capacity over 200 sets per year.
3. All equipments with compact structure, suitable for container load.
4. Select premium steel with high quality.
5. Complete production control with detailed record and video.
6. Our factory had passed ISO system authentication, including ISO9001, ISO 14001, OHSAS18001.
7. We manufacture our standard equipment, also welcome OEM and ODM.
Our service
Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, you may get as below,
1. Design drawing as your requirement
2. Equipment solution as your real condition
3. Quality equipment as your order
4. Quick response as your time
5. Fast delivery as your demand
6. Complete warranty as your expect
Quality product, quick response and cost saving.
Delivery and shipping
1. Production time around 5-15 days per set
2. Suitable for 40 HQ container loading
3. Trade terms EXW, FOB, CFR, CIF
After sale service
1. Warranty one year
2. Online support service and video technical support
3. Free spare parts
4. Field installation, commissioning and training, field maintenance
